MÁY NÉN KHÍ BOOSTER, HPC-BOOSTER 15

(1 đánh giá)

Mã sản phẩm : HPC-BOOSTER 15

Xuất xứ : HERTZ-GERMANY

Bảo hành : 12 Tháng

MÁY NÉN KHÍ BOOSTER TĂNG ÁP (BOOSTER COMPRESSOR) - Model: HPC BOOSTER 15 - Áp suất đầu vào Máy nén khí tăng áp Booster: 7 Bar, 10 bar và 13 bar - Lưu lượng ra 40 Bar từ: 2,45 m3/phút - 3,37 m3/phút - 4,29 m3/phút - Công suất: 11KW/15HP - Áp suất làm việc max: 40 Bar - Kiểu làm mát: Gió - Nguồn cấp: 380V/3Ph/50Hz or 60Hz - Ứng dụng cho ngành công nghiệp THỔI CHAI PET

Giá sản phẩm : Vui lòng gọi

Chi tiết

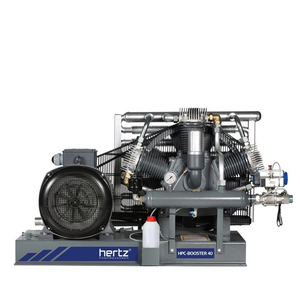

MÁY NÉN KHÍ BOOSTER TĂNG ÁP (BOOSTER COMPRESSOR)
- Model: HPC BOOSTER 15
- Áp suất đầu vào Máy nén khí tăng áp Booster: 7 Bar, 10 bar và 13 bar
- Lưu lượng ra 40 Bar từ: 2,45 m3/phút - 3,37 m3/phút - 4,29 m3/phút
- Công suất: 11KW/15HP
- Áp suất làm việc max: 40 Bar
- Kiểu làm mát: Gió
- Nguồn cấp: 380V/3Ph/50Hz or 60Hz
- Ứng dụng cho ngành công nghiệp THỔI CHAI PET

*The specifications and details are subject to change without prior notice 60Hz versions are available upon request.

TAILORED SOLUTIONS FOR PET APPLICATIONS

Booster compressors are on ideal choice for PET bottling applications whereas high pressure compressed air is required. Hertz offers a wide range of booster compressors that are able to boost the compressed air from a screw compressor (inlet pressure 8,10,13 bar) up to 40 bar.

INNOVATIVE RESEARCH & DEVELOPMENT

Hertz’s wide range of Booster Series are designed with the latest innovations in reciprocating compressor technology. All compressor blocks are built and manufactured by HERTZ from 7.5 kW up to 55 kW capacity.
A booster takes air from a compressed air main and increases the pressure for certain applications such as seal testing in pneumatic and hydraulic devices, certain actuating cylinders, presses, clamping fixtures and PET bottle production.
Usually the volume of air demand at higher pressures of arround 40 bar is relatively small so the booster is an economical means of supply and more efficient than to lift the pressure in the complete air main to this level. Hertz boosters are delivered ready for use and include an air-cooled compressed air aftercooler as standard.

STANDARD SPECIFICATIONS

• Specially designed for long life and problem free working for PET industry
• 5-13 bar(g) intake pressure alternatives
• Max. 40 bar(g) working pressure
• Nine different models, from 7.5 kW to 55 kW
• Load-unload working alternative
• GG 22 cast iron crankkase
• GG 25 cast iron cylinder
• GGG 60 cast iron well balanced crankshaft
• Light aluminium alloy piston
• GGG 50 cast iron connacting rod
• Special design high pressure valve system
• Long life bearings

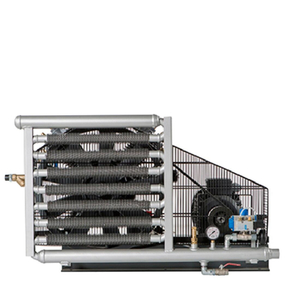

• Aircooled aftercooler
• Air intake filter and silencer
• Splash lubrication
• Oil level gauge
• Factory filled oil compressor
• IP 54, F class electric motor
• High pressure switch
• Intake pressure manometer
• Manuel drain valve
• Non return valve
• Belt guard
• High pressure relief valve
• Discharge pressure manometer
• Special loadless starting system
• Special blow out system
• Vibration-free working by the help of the special vibration dampers
