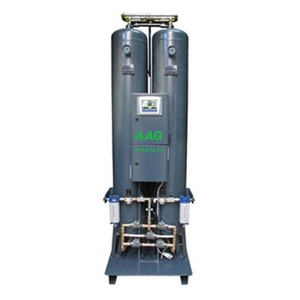

MÁY TẠO KHÍ NI TƠ AAG, MODEL: NITROPAK 250

(1 đánh giá)

Mã sản phẩm : NITROPAK 250

Xuất xứ : AAG-TURKEY

Bảo hành : 12 Tháng

Máy Sản Xuất Khí NiTơ dạng PSA (Tháp Đôi) Model: NİTROPAK xxx Độ thuần khiết khí Ni tơ: 95% - 99% - 99.5% - 99.9% - 99.99% - 99.999% Lưu lượng N2: 0.18 ...355.6 (m3/h) Nhiệt độ điểm sương: - 40 oC Hãng sản xuất: AAG - EU

Giá sản phẩm : Vui lòng gọi

Chi tiết

TWIN TOWERS SERIES
Reliable and Economic N2 production with PSA technology to 99,999% pureness.

AAG Nitrogen Generator Unit is designed to amortize your investment by saving from the nitrogen consumption.
It ıs designed to be installed easily in every indoor place. It only requires compressed air line and power source.

There is a variety of field in Nitrogen Industry and Aplications. FOOD,MEDICINE INDURTY,PACKAGING, AUTOMOTIVE, LASER CUT, ELECTRONICS, PETRO CHEMICAL, PLASTIC INJECTIONS, COOLING, CHEMICAL, DYEING, COSMETIC ARE THE MAIN SECTORS.

Generator if desired, Medical Kit, Food pack filter kit, Remote GSM Control, Nitrogen Analyzer can be added as optional functions.

Touchscreen LCD control panel supply ease of use by specs.

MODEL DIMENSIONS OF NITROGEN GENERATORS NİTROPAK

MODEL	Weight (kg)	Dimensions I x d x h (cm)	Particle content (μm)	Inlet Air Pressure ( BARg)	N2 Output Pressure (BARg)	Power
NİTROPAK 5	45	250X750X801	0.01	6 to 11	5 to 10	220-240 VAC/ 50 Hz – 20W
NİTROPAK 10	56	250X750X1200	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 20W
NİTROPAK 15	90	250X750X1400	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 20W
NİTROPAK 20	200	370X1000X1090	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 100W
NİTROPAK 30	270	370X1000X1090	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 100W
NİTROPAK 213	740	750X750X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 150W
NİTROPAK 226	950	800X1060X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 150W
NİTROPAK 239	1850	900X1270X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W
NİTROPAK 252	2000	1000X1400X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W
NİTROPAK 265	2150	1000X1600X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W
NİTROPAK 278	2600	1000X1800X2500	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W
NİTROPAK 291	3200	1000X1900X3000	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W
NİTROPAK 304	3600	1200X2000X3000	0.01	6 to 11	5 to 10	110-240 VAC/ 50 Hz – 200W

MINIMUM NITROGEN OUTPUT FLOW WITH COMPRESSED AIR INLET PRESSURE OF 8.0 BAR (Q)

Pin : 8 bar	N2 flow	(Nm3/h)
MODEL	%95	%96	%97	%98	%99	%99.5	%99.9	%99,95	%99.99	%99.999
NITROPAK 5	2.08	1.84	1.60	1.38	1.14	0.90	0.60	0.48	0.31	0.18
NITROPAK 10	4.4	3.9	3.4	2.9	2.4	1.9	1.29	1.0	0.7	0.4
NITROPAK 15	6,7	5.9	5.1	4.4	3.7	2.9	1.9	1.5	1.0	0.6
NITROPAK 20	10.1	8.9	7.8	6.7	5.72	4.4	2.8	2.4	1.6	0.7
NITROPAK 30	15.6	13.8	12	10.4	8.8	6.8	4.4	3.7	2.6	1.1
NITROPAK 50	26.0	23.0	20.0	17.3	14.6	11.4	7.3	6.1	4.3	1.9
NITROPAK 100	52.0	46.0	40.0	35.4	29.3	23.2	14.0	12.7	8.4	5.1
NITROPAK 130	96.2	82.8	68.0	53.3	40.6	33.6	23.0	18.2	12.0	7.8
NITROPAK 250	113.8	100.7	87.5	75.6	64.1	49.9	32.0	27.4	18.2	7.1
NITROPAK 400	199.3	176.3	153.3	132.4	112.2	87.5	56.1	48.1	32.0	12.4
NITROPAK 650	299.0	264.5	230.0	198.6	168.3	131.2	84.1	72.1	48.0	18.6
NITROPAK 800	355.6	314.5	273.5	236.2	200.2	156.1	100.0	85.7	57.0	22.1
NITROPAK 1000	460.9	407.7	354.5	306.2	259.5	202.3	129.6	111.1	73.9	28.7
NITROPAK 1250	553.1	489.3	425.5	367.4	311.4	242.8	155.5	133.4	88.7	34.4
