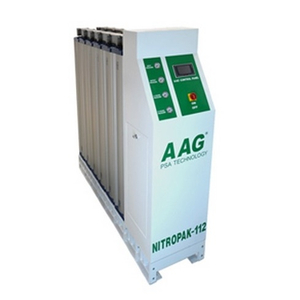

MÁY TẠO KHÍ NITO AAG, MODEL: NITROPAK 110

(1 đánh giá)

Mã sản phẩm : NİTROPAK 102

Xuất xứ : AAG-TURKEY

Bảo hành : 12 Tháng

MÁY SẢN XUẤT KHÍ NITO KIỂU PSA Model: NİTROPAK 102 Độ thuần khiết khí Ni tơ: 99.999%-99.99%-99.9%-99.5%-99%-95% Lưu lượng N2: 2.0 m3/h.....15.9 (m3/h) Nhiệt độ điểm sương: - 40o C Hãng sản xuất: AAG - EU

Giá sản phẩm : Vui lòng gọi

Chi tiết

PRODUCES HIGH-PURITY NITROGEN GAS FROM COMPRESSED AIR (PURITY TO %99,999)

Due to modular design (international patents pending);

- Creates the most appropriate solution to any capacity of nitrogen gas which is required.
- Modular design offers you with ideal and economic opportunities while gas consumption of nitrogen increases.
- Simply adjust your NITROPAK system by varying the number of PSA modules. Just by yourself, no other adjustment or component to the system required.
- Modular design: Decreases of energy costs with due to ideal capacity utilization, that provides real savings to you.
- If we express according to another, the capacity value does not fall below with swiftly while purity value increase, like twin tower design.
- To work without problem for a long time due to these components whichare aluminum extrusion profiles with anodised coating and electrostatic painted, easily assembly-disassembly features to frame, resistant a PLC and choice of a valve with long life (2 milions operation guarentee) in the PSA modules
- Inlet pressure of pressured air: 7bar(g), Nitrogen outlet pressure: 6bar(g)
- Inlet pressure of pressured air: 10bar(g), Nitrogen outlet pressure: 8bar(g)
- Modular design offers you a compact construction; Ideal for container solutions with this size constancy.
- The spare parts same in the all models to used identical components for the entire model range.
- This means, limited spare part management, easy maintenance and services.
- Same desiccant material and bead diameter use for all models.
- Modular NITROPAK is limited with total 8 pair modules. It possible to work total 8 unit with 3 Modular NITROPAK with same PLC and Nitrogen Analyzer.

NİTROPAK MODULAR DIMENSIONS OF NITROGEN GENERATORS MODEL

MODEL	Weight (kg)	Dimensions L x D x H (cm)	Particle content (μm)	Inlet Air Pressure ( Barg)	N2 Output Pressure (Barg)	Power
NİTROPAK 102	306	461X660X1800	0.01	7	6	220-240 VAC/ 50 Hz
NİTROPAK 104	457	461X880X1800	0.01	7	6	220-240 VAC/ 50 Hz
NİTROPAK 106	609	461X1100X1800	0.01	7	6	220-240 VAC/ 50 Hz
NİTROPAK 108	760	461X1320X1800	0.01	7	6	110-240 VAC/ 50 Hz
NİTROPAK 110	912	461X1540X1800	0.01	7	6	110-240 VAC/ 50 Hz
NİTROPAK 112	1063	461X1760X1800	0.01	7	6	110-240 VAC/ 50 Hz
NİTROPAK 114	1214	461X1980X1800	0.01	7	6	110-240 VAC/ 50 Hz
NİTROPAK 116	1365	461X660X1800	0.01	7	6	110-240 VAC/ 50 Hz

MINIMUM NITROGEN OUTPUT FLOW WITH COMPRESSED AIR INLET PRESSURE OF 8.0 BARG

	N2 flow/Nm3/h	N2 flow/Nm3/h	N2 flow/Nm3/h
MODEL	%99.999	%99.99	%99.9	%99.5	%99	%98	%97
NİTROPAK 102	2	3.5	6	10	11.5	14	15.9
NİTROPAK 104	4	7	12	20	23	28	31.8
NİTROPAK 106	6	10.5	18	30	33.5	42	47.7
NİTROPAK 108	8	14	24	40	45	56	63.6
NİTROPAK 110	10	17.5	30	50	55.5	70	79.5
NİTROPAK 112	12	21	36	60	76	84	95.4
NİTROPAK 114	14	24.5	42	70	72.5	98	111.3
NİTROPAK 116	16	28	48	80	90	112	127.2
