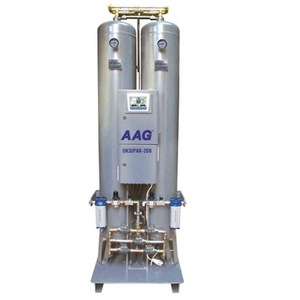

MÁY TẠO KHÍ OXY AAG, MODEL: OKSIPAK 248

(1 đánh giá)

Mã sản phẩm : OKSIPAK 248

Xuất xứ : AAG-TURKEY

Bảo hành : 12 Tháng

MÁY TẠO KHÍ OXY AAG - EU - Model: OKSIPAK 1xx - Xuất xứ: EU - Độ thuần khí Oxy: 93% - 95% - Lưu lượng: 0.7 - 52.5 m3/giờ - Áp suất đầu ra: 6 kgf/cm2 - Máy nén khí cần: ...... L/phút - Sử dụng hạt Zeolite, tuổi thọ trên 40,000 giờ hoạt động. - Điện áp nguồn: 230V / 1phase / 50Hz

Giá sản phẩm : Vui lòng gọi

Chi tiết

OXYGEN GENERATORS TWIN TOWERS SERIES

AAG Oxygen Genarators produce highly pure air from compressed air.It provides more competitive prices and acquirable compared toalternative sources.

Oksipak Oxygen Generators Unit is designed to amortize your investment in big quantities by saving oxgen consumption in quick time.

It is designed to be installed indoor places easily.It only requires compressed air line and power supply.
OKSIPAK can also be connected to an external memory to store or cease production/ consumption according to every applications’ need.
Application Fields of the AAG Oxygen Generatorss:

HOSPİTALS,LABORATORİES,OXYFUEL TECHNOLOGY, WELDİNG, BRAZİNG AND STEEL CUTTİNG, FISH FARMİNG, OZONE, WASTEWATER TREATMENT.

Generator if desired, Medical Kit, Food pack filter kit, Remote GSM Control, Oxygen Analyzer can be added as optional function

Touchscreen LCD control panel supply ease of use by specs.

OXGEN GENARATORS TECNICAL DATA

MODEL	Weight (kg)	Dimensions WxLxH (mm)	Particle content (μm)	Inlet Air Pressure bar (g) MAX	O2 Output Pressure bar (g)	Power
OKSİPAK 5	100	370X120X120	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 20	180	370X960X1800	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 208	700	750X750X2500	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 216	950	800X1060X2500	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 224	1350	900X1270X2500	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 232	2100	1000X2000X2500	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 240	3400	1000X2000X3400	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 248	3500	1000X2000X3400	0.01	7,5	0 to 5	220/ 50Hz-150W
OKSİPAK 256	3500	1000X2000X3400	0.01	7,5	0 to 5	220/ 50Hz-150W

Oxygen output flow with Compressed Air İnlet pressure of 7,5 bar (g)

pin=7,5 bar (g)	O2 Flow (Nm³/h)	Comp Air Consump. (Nm3/h)	O2 FLOW (Nm3/ h)	Comp Air Consump. (Nm3/h)	O2 FLOW (Nm3/h)	Comp Air Consump. (Nm3/h)
MODEL	%90	%90	%93	%93	%95	%95
OKSİPAK 5	0,7	7	0,5	5	0,4	5
OKSİPAK 20	2,8	28	2,1	21,6	1,6	20
OKSİPAK 208	9	90	8,3	100	7,5	97,5
OKSİPAK 216	18	180	16,5	200	15	195
OKSİPAK 224	27	270	24,9	300	22,5	293
OKSİPAK 232	36	360	33,2	400	30	390
OKSİPAK 240	45	450	41,5	500	37,5	490
OKSİPAK 248	54	540	49,5	600	45	590
OKSİPAK 256	63	630	58,1	700	52,5	690
