PHAO XẢ NƯỚC AOK20B
AOK20B
OMEGA_AIR_EU
12 Tháng
Vui lòng gọi

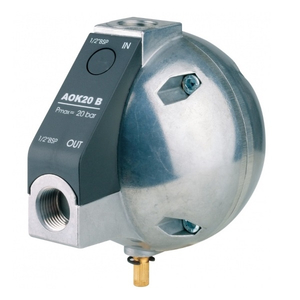

AOK 20B
AOK20 has been developed for fully automatic discharging of condensate or any other nonaggressive fluid from compressed air⁽¹⁾ system. The unit can be installed as external drain on any application specified. Condensate accumulates in the aluminium reservoir and when the level is high enough condensate is being discharged from the system without any air losses. Direct acting valve is operated by precise level controlled floater which assures reliable and efficient operation. Thanks to robust aluminium housing AOK20 is suitable for heavy duty applications. AOK20 is also equipped with separate manual drain for venting. AOK20 can be used in variety of applications. For applications not listed please contact producer or your local distributor ⁽¹⁾For any other technical gas please contact producer or your local distributor.
Characteristics
| operating pressure | 20 bar |
| drain capacity | 167 l/h |
| connections | ½'' |
| operating temp. range | 1,5 to 65 °C |
Applications
• after-cooler
• cyclone condensate separator
• pressure vessel/air tank
• air dryer
Technical data
Files
